| Primary Supplier | EADS |
| Designation | CV20040C Warrior II |
| Role | Infantry fighting vehicle Droopy transportable, upto 8 dismounts. |
| Length | 7.33 m |
| Width | 3.70 m over the skirts’ ERA |
| Height | 2.04 m to the hull roof; 2.90 m to the turret roof; 3.00 m to the missile box; 3.16 m overall. |
| Mass empty | classified |
| Mass combat | 51.4 tonnes, composite armour |
| Crew | 3: two in the front row and one behind 8 dismounts on fold-up seats, 4 a side, backs to the walls, facing across the bay; 1.36 m headroom |
| Operation | [not set] |
| Drive | As the Leopard 4: tracks with a hub motor in every road wheel, 8 stations a side, and four hardpoints for EM pods for recovery etc. |
| Energy | Battery, LH2 tanks, fuel cells. |
| Road speed | 65 km/h (18 m/s) cruising, 108 km/h (30 m/s) max (both forward and reverse) |
| Acceleration | 3 m/s² |
| Armament | 40 mm L70 tri-barrel gatling on a trunnion over the turret. Elevation −8.25° to +90° ahead over the hull, −20.25° over the turret: 150–200, 600 or 900–1,000 rounds a minute (low, standard, and short anti-air bursts with proximity rounds). 1,280 caseless, binary-propellant rounds: 1,190 in the turret’s magazine and 90 in a ready box (30 proximity anti-air, 30 multipurpose HE, 30 APFSDS). Titanium barrels over steel liners; gun 2.57 tonnes. Four general purpose missiles in a box on the turret. Drones: 4 small and 2 recon drone boxes on the turret. |
| Range | [not set] |
| Point defence | Two 12 mm tri-barrel gatlings, on the glacis and on the turret’s bustle (it turns with the turret) |
| Protection | Composite armour [threat level not set]; 227 ERA blocks; active defence with 2 launchers and 4 radar panels on the turret; NBC protection (est.); the magazine under a blow-out panel in the bustle’s roof; mines and IEDs [not set] |

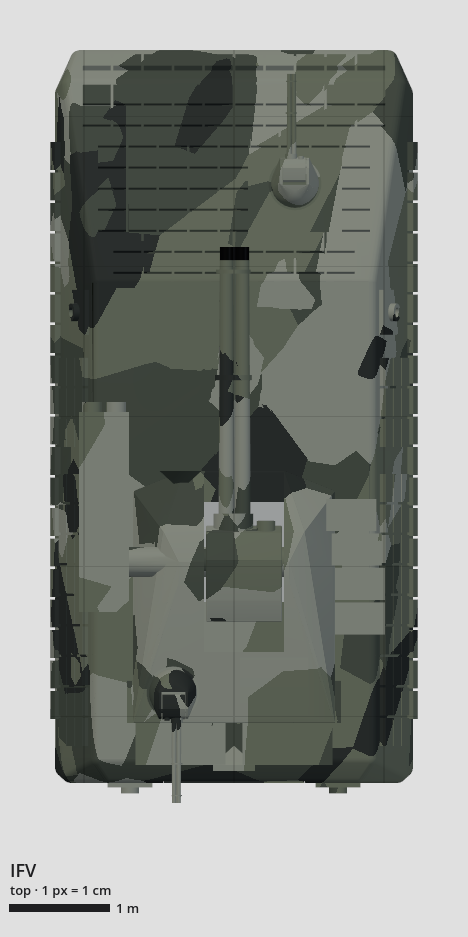

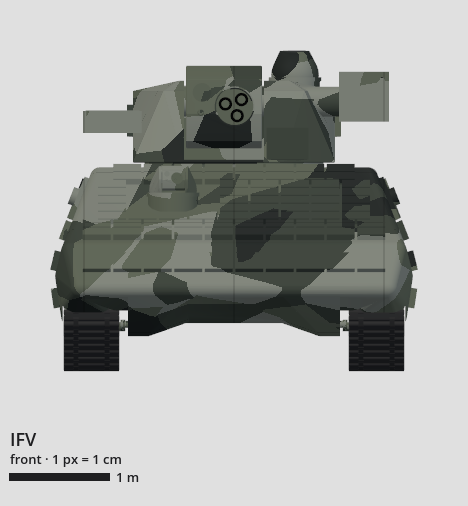

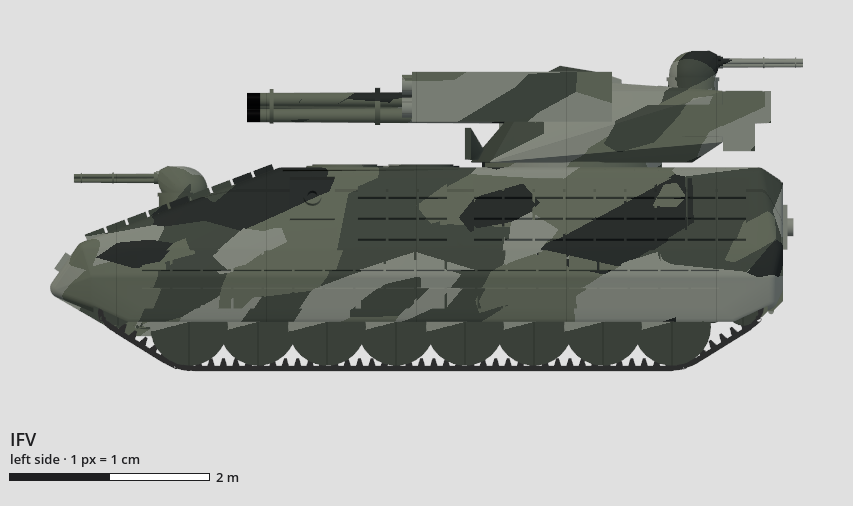

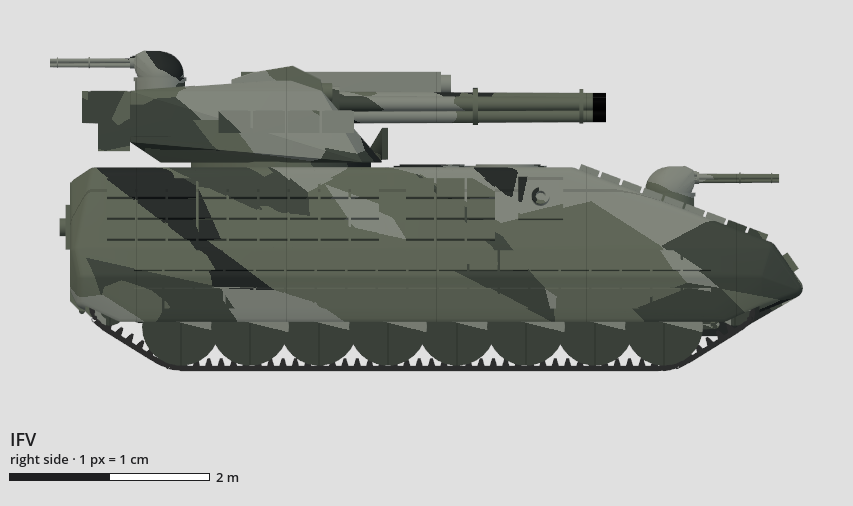

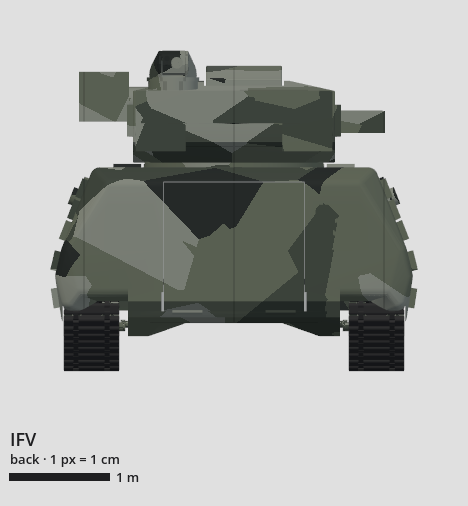

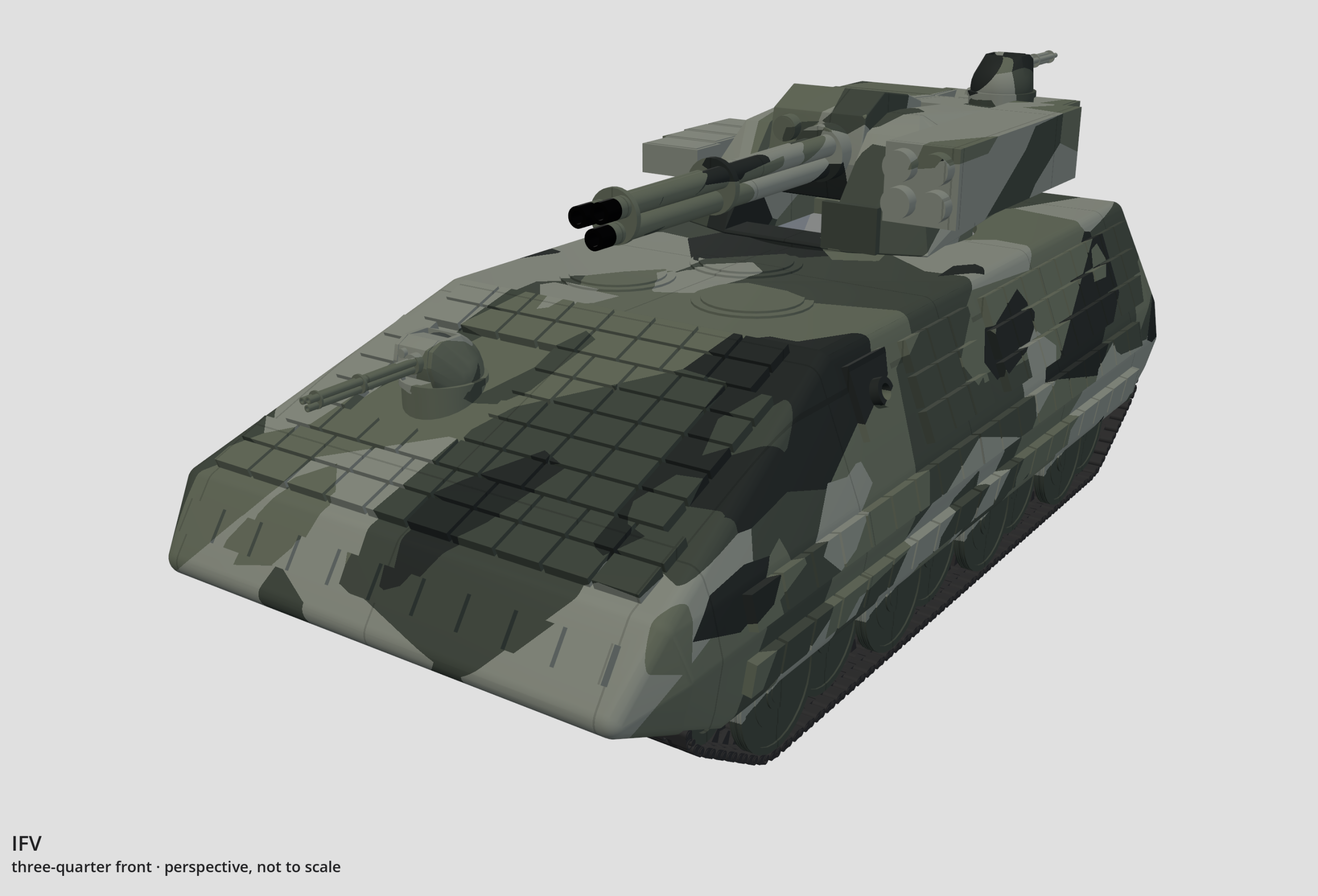

Technical drawings
